Rear Tailgate Clearance (Will it hit the awning?)
Rear Tailgate Clearance (Will it hit the awning?) Whether your tailgate will clear the awning depends on your roof rack height and how high your tailgate opens. As a rule, you’re good to install if:
A=Roof rack height above the vehicle
B=Tailgate open height
B < A + 2.5 cm
If you’re unsure, send us your vehicle model and roof rack setup — we’ll help confirm fitment.
PRODUCT INFORMATION
BUILT FOR AUSTRALIAN TOURING
ALUMINIUM ALLOY SWING ARMS
Dual-layer aluminium alloy swing arms paired with reinforced bracing and heavy-duty hinges for confident deployment in harsh touring conditions.

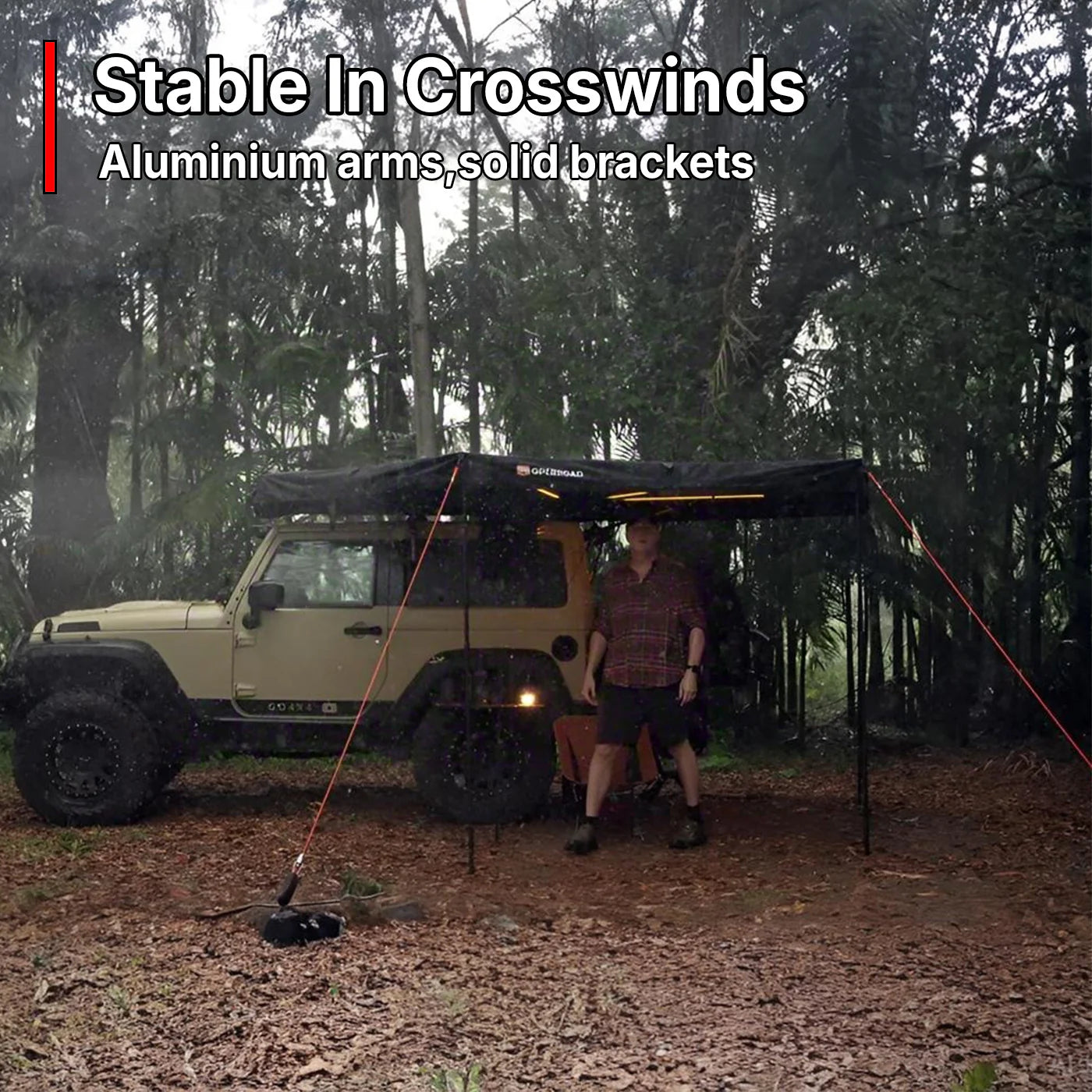

REAL WORLD WIND TESTING

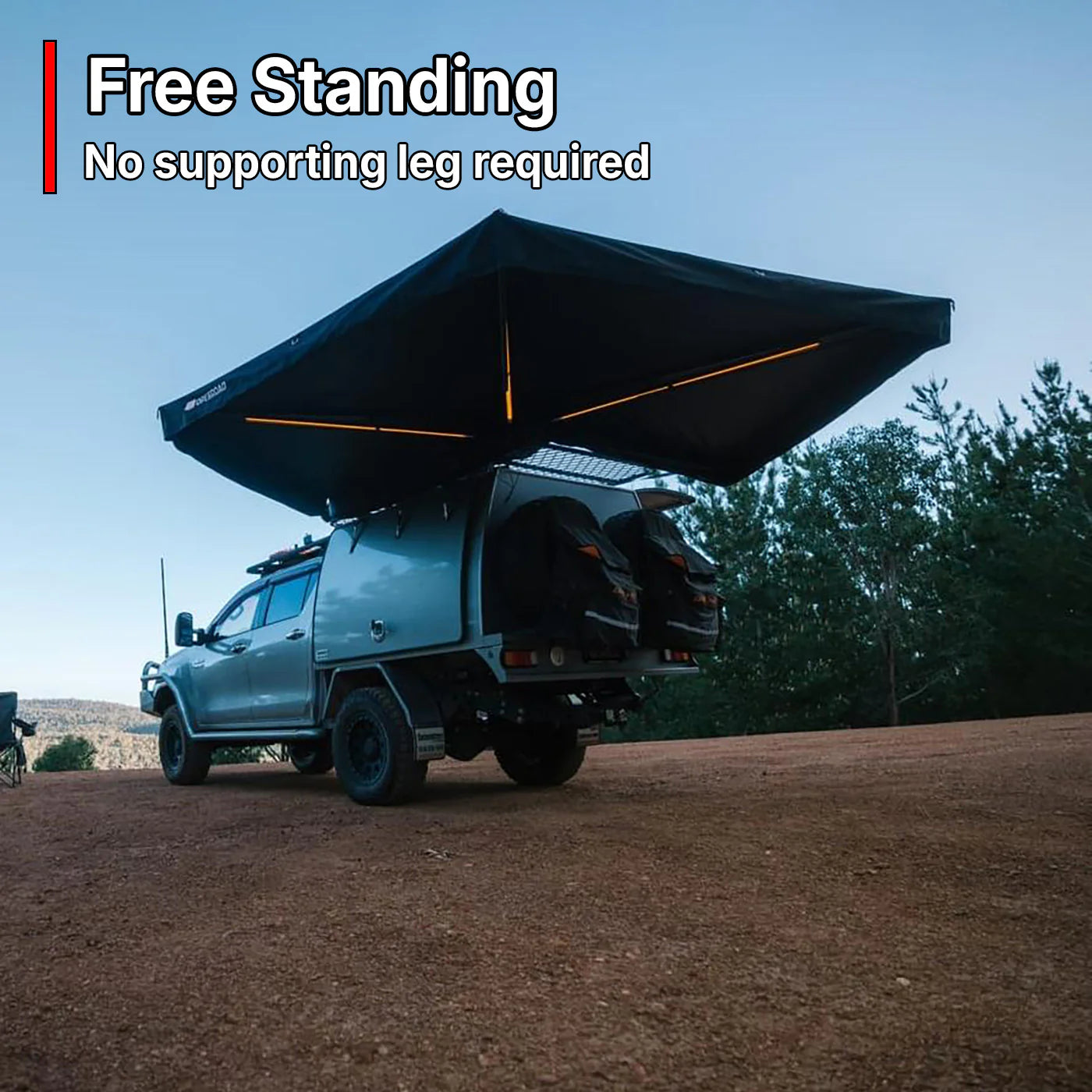

Rigorously tested in real Australian conditions to validate freestanding performance and structural stability.

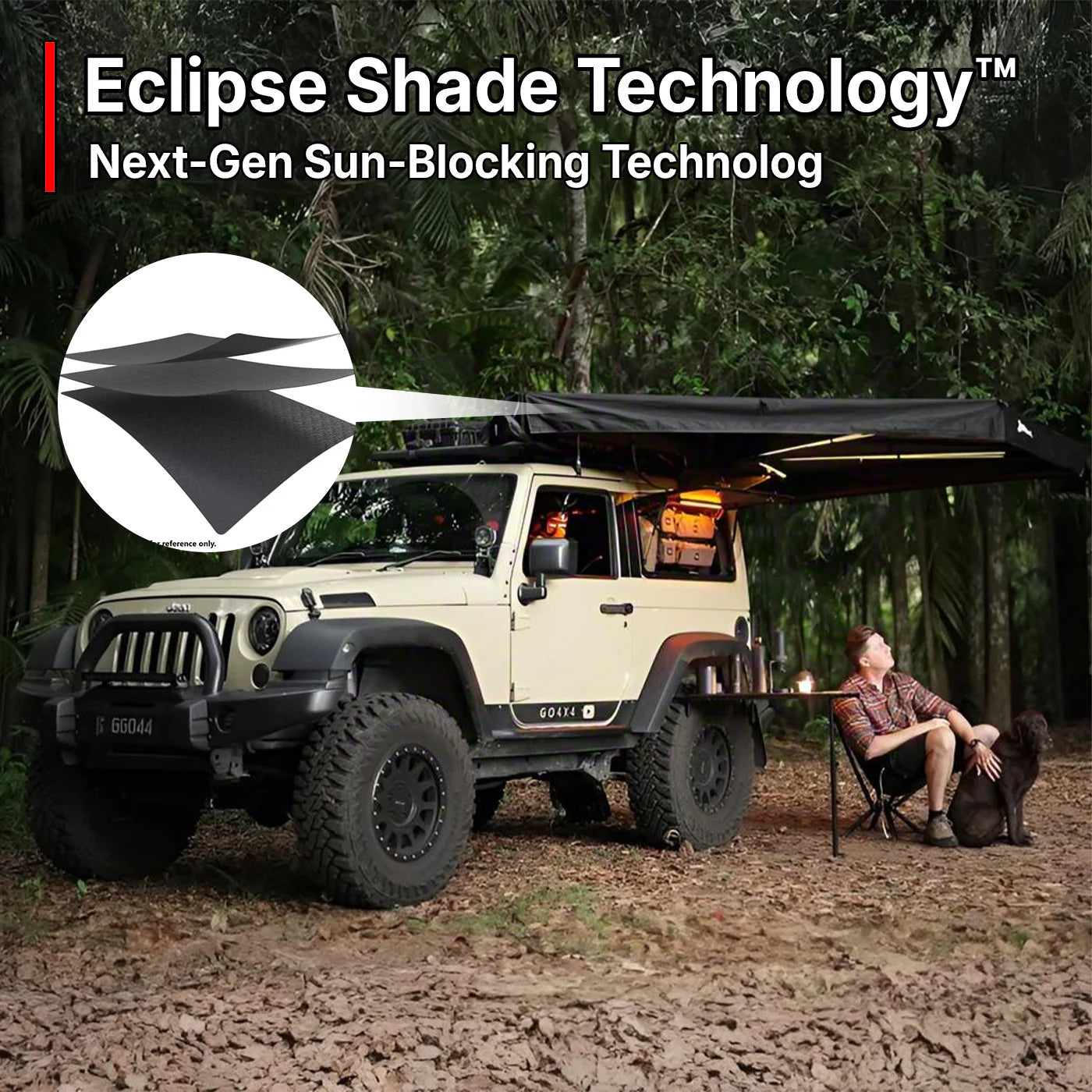

ECLIPSE SHADE TECHNOLOGY
High-density blackout material engineered to reduce heat, block harsh UV exposure and improve comfort while touring.

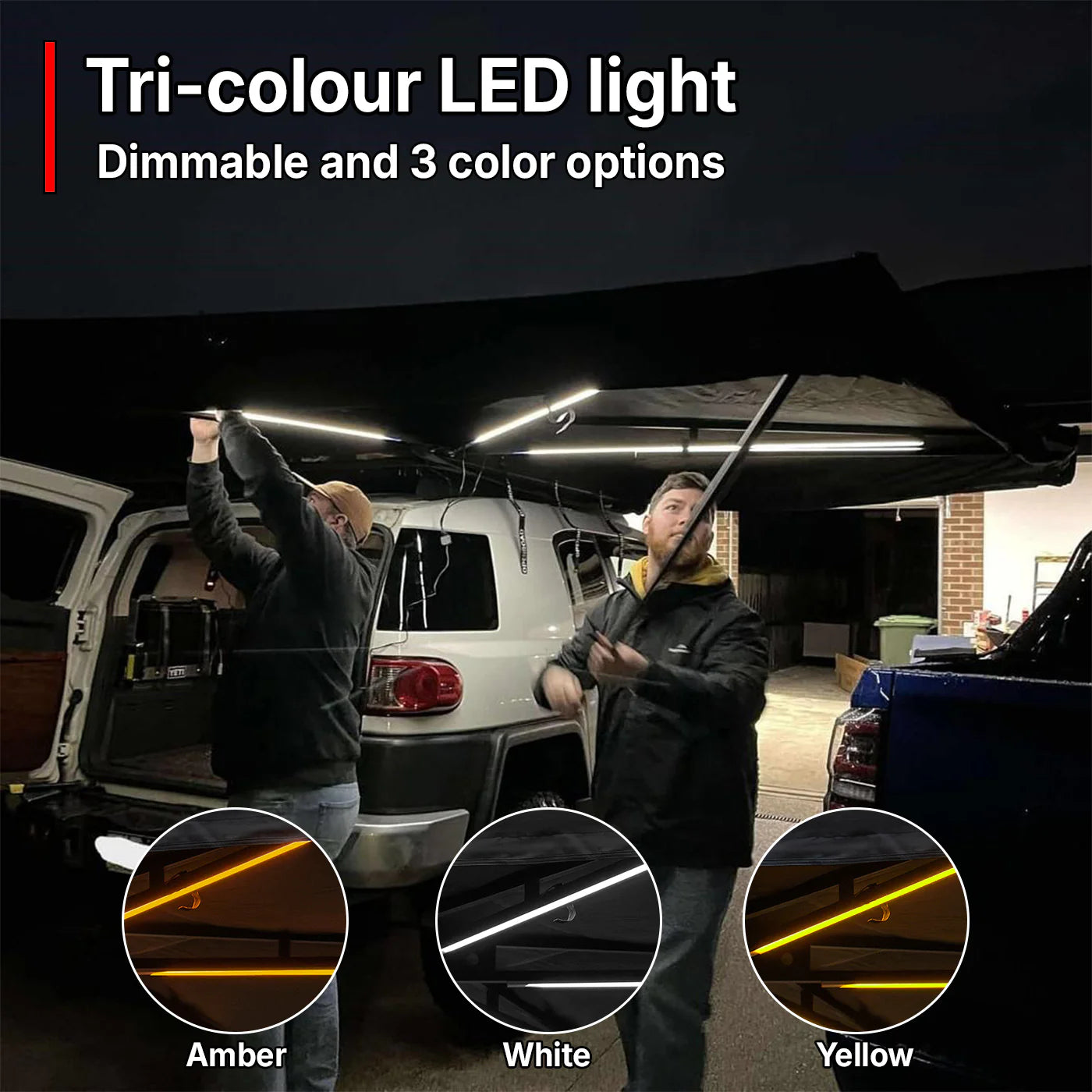

TRI-COLOUR LED LIGHTING
Integrated dimmable lighting with white, warm and amber modes designed for practical campsite visibility.
DRAINAGE SUPPORT SYSTEM
Integrated support pole helps prevent water pooling and improves drainage performance during wet weather conditions.
| WEIGHT | 31 kg |
|---|---|
| COVERAGE | 270°, 8.8 m² (96.8 ft²) |
| DIMENSIONS (OPEN) | See diagram below |
| DIMENSIONS (CLOSED) | 2.2 m × 0.2 m × 0.2 m (85.8" × 7.9" × 7.9") |
| SUN SCREEN LEVEL | UV50++ |
| WATERPROOF | 3000mm |
| FRAME MATERIAL | Aluminium Alloy |
| AWNING MATERIAL | Waterproof 230GSM polyester enhanced with blackout coating that blocks up to 95% of UV rays. |
| WIND RATING |
Freestanding – 30km/h Support Legs & Guylines – 60km/h |
| PULL-DOWN LEGS | 4 × pull-down legs |
| ADJUSTABLE INTEGRATED PULL-DOWN LEG | Adjustable range: 1.2 m – 2.2 m (47.5" – 90") |
INCLUDED ACCESSORIES
EVERYTHING YOU NEED FOR SETUP

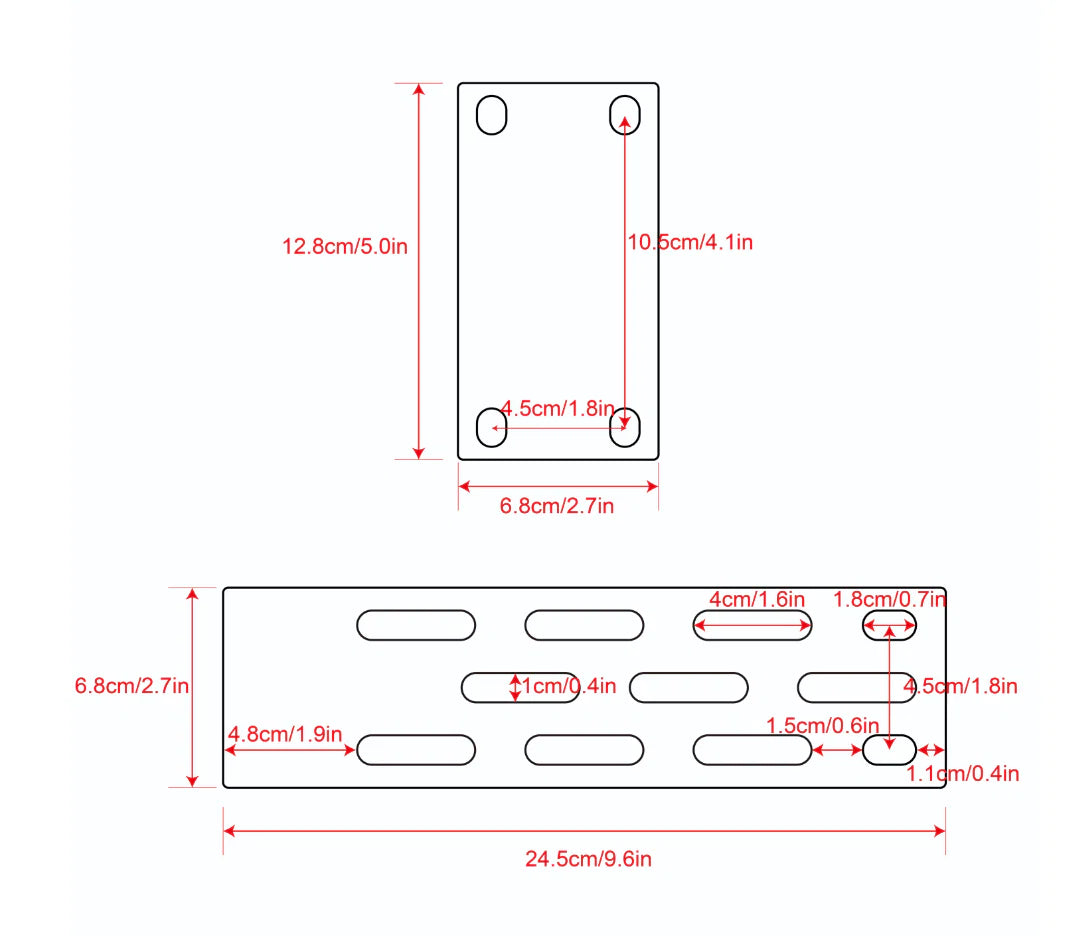

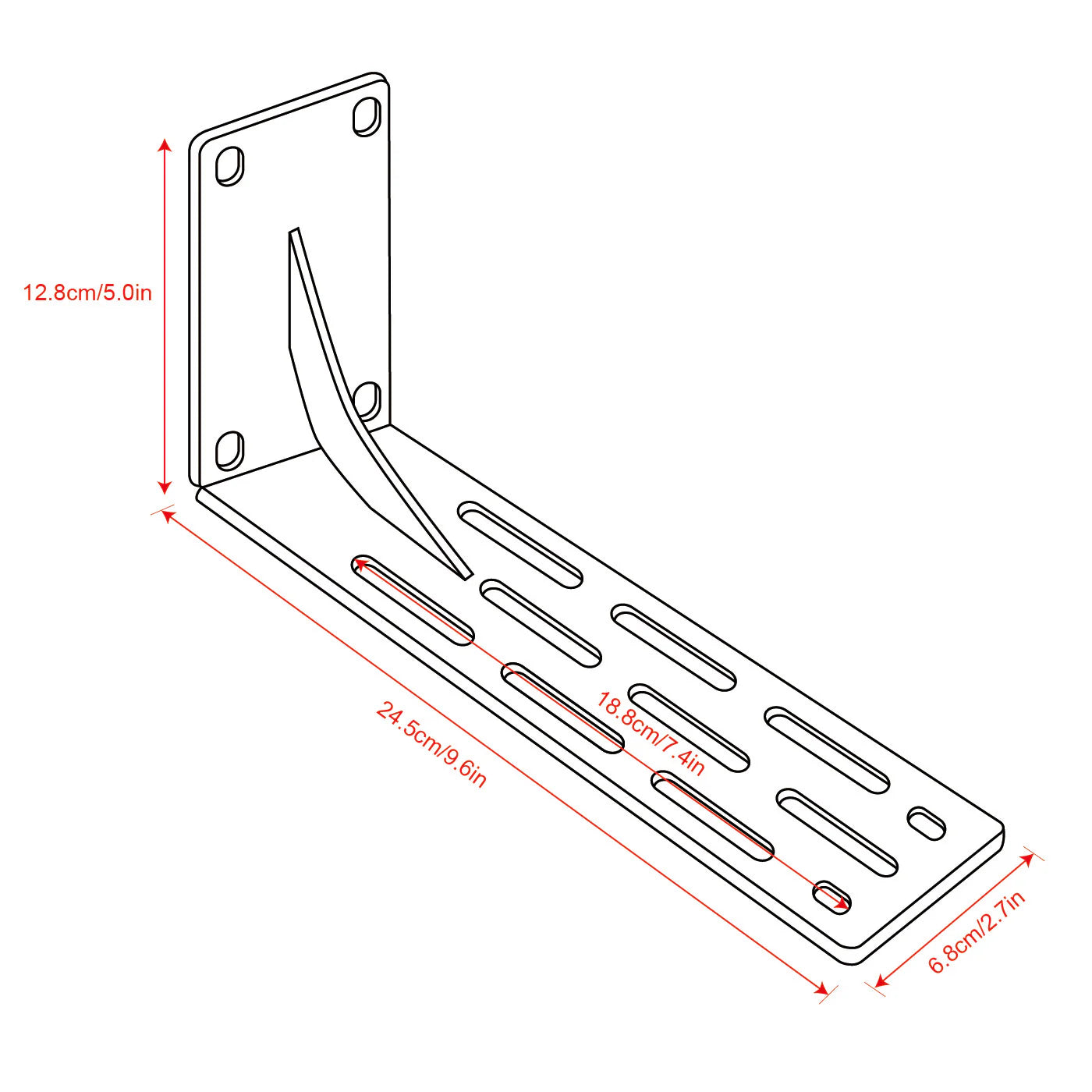

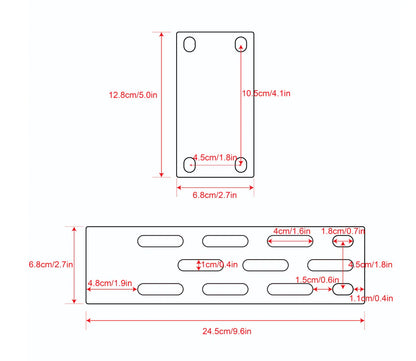

- 3 Mounting Brackets
- USB Power Cord
- 2 Ratchet Ropes
- Black Storage Bag
- 6 Mounting Pieces
- 4 Wind Ropes
- 4 Heavy Duty Ground Stakes
- 3 Support Legs
- 2 Wrenches
- Includes Assorted Screws & Caps

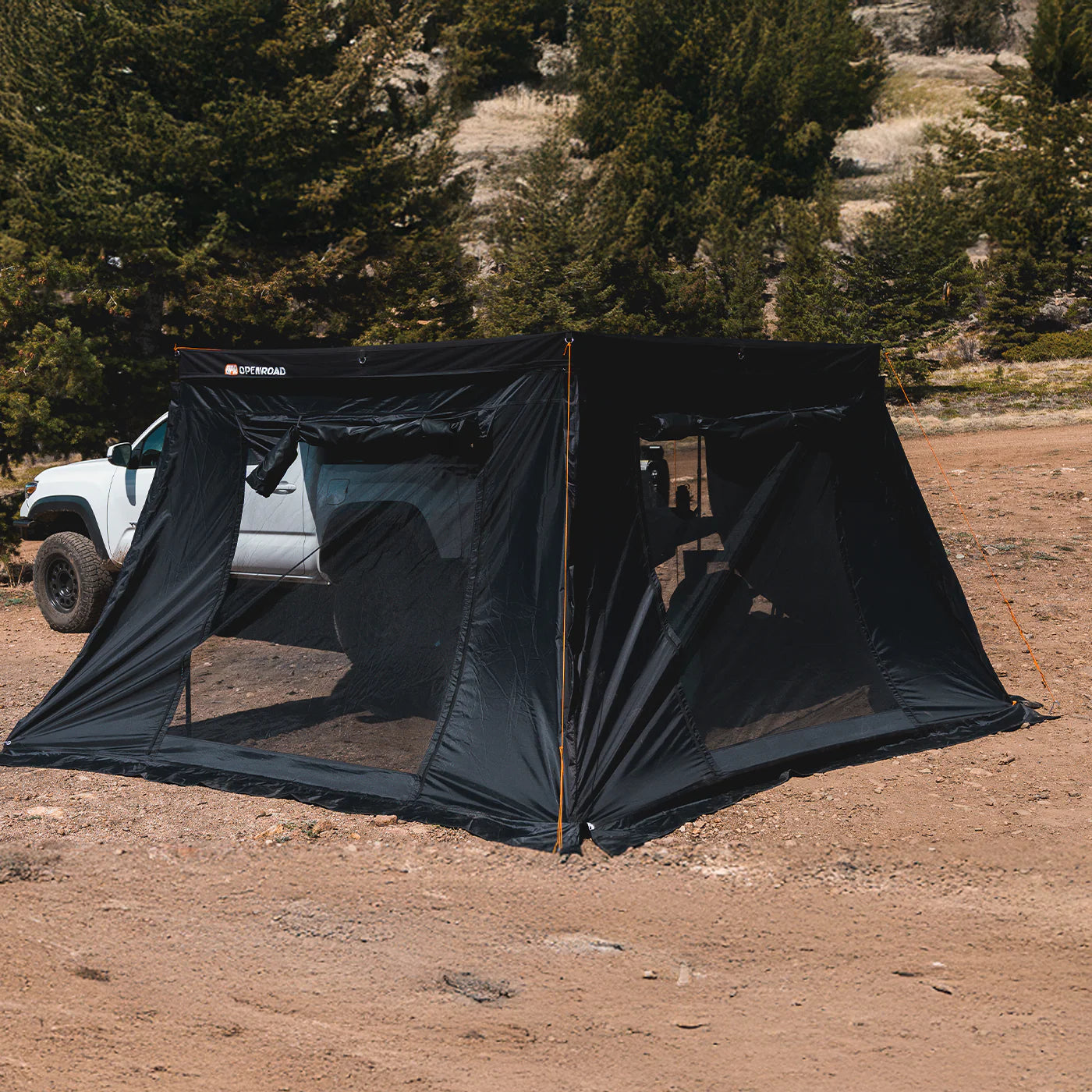

270 AWNING SIDE WALL
Shielding you from the sun in summer, and from wind and rain in winter.
IMPORTANT INFORMATION
OPENROAD TIPS & WARNINGS
WIND WARNING
Freestanding awnings should always be secured using the supplied guy ropes and support poles during windy conditions.

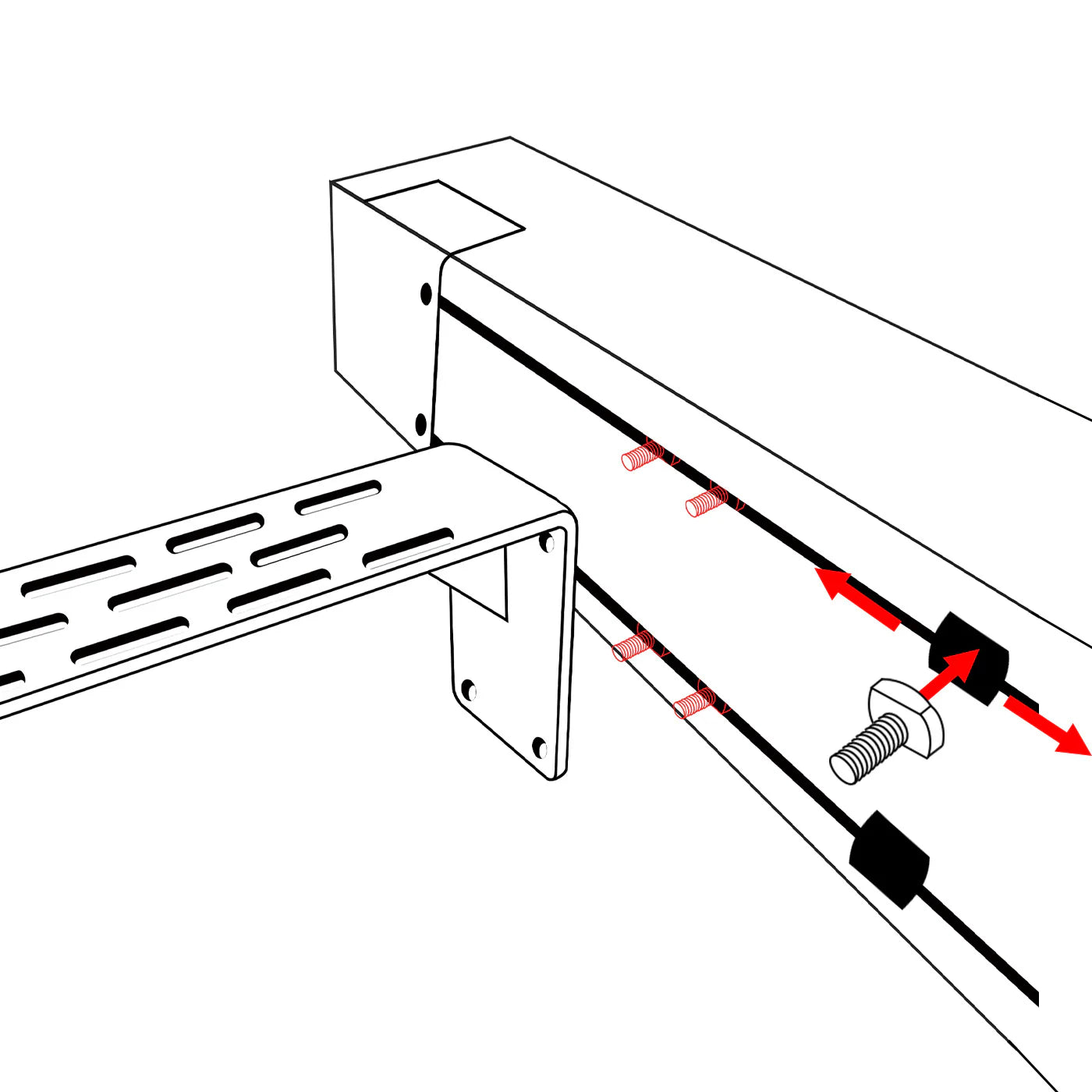

PROPER INSTALLATION
Ensure all mounting hardware is tightened correctly and regularly checked before travel or offroad use.
WEATHER CONDITIONS
Heavy rain, strong wind and storms can place excessive stress on awning arms and mounting systems. Pack away during extreme weather conditions.
OPENROAD TIP
For maximum lifespan, always allow the awning to dry completely before long-term storage.

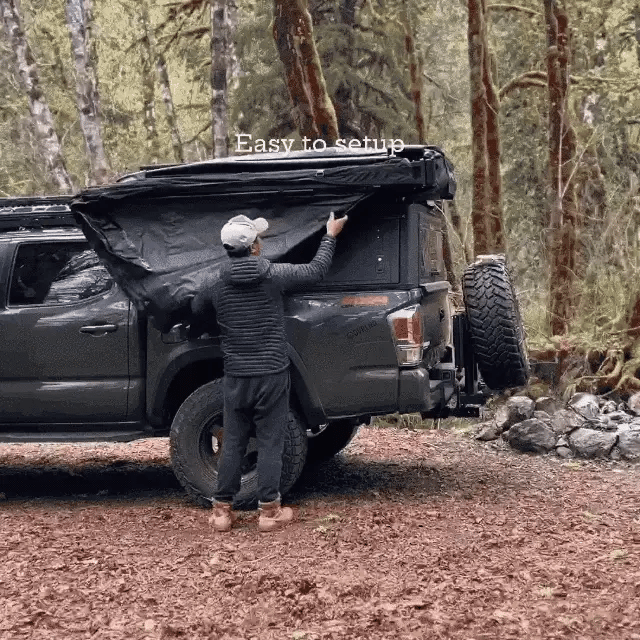

WATCH THE FULL WALKTHROUGH
When you roll the awning back, push each hinged arm toward the housing so the fabric and zipper stay aligned — this prevents the canvas from bunching and makes the zipper easy to close. Tip: do one arm at a time and don’t force the zipper; realign and try again.
